Features:
Heat insulation & preservation, energy-saving
95%-97% reflectivity, ≥15℃ internal-external temperature difference
Excellent water & moisture resistance
Safe, eco-friendly, non-toxic
Easy to cut, install and clean

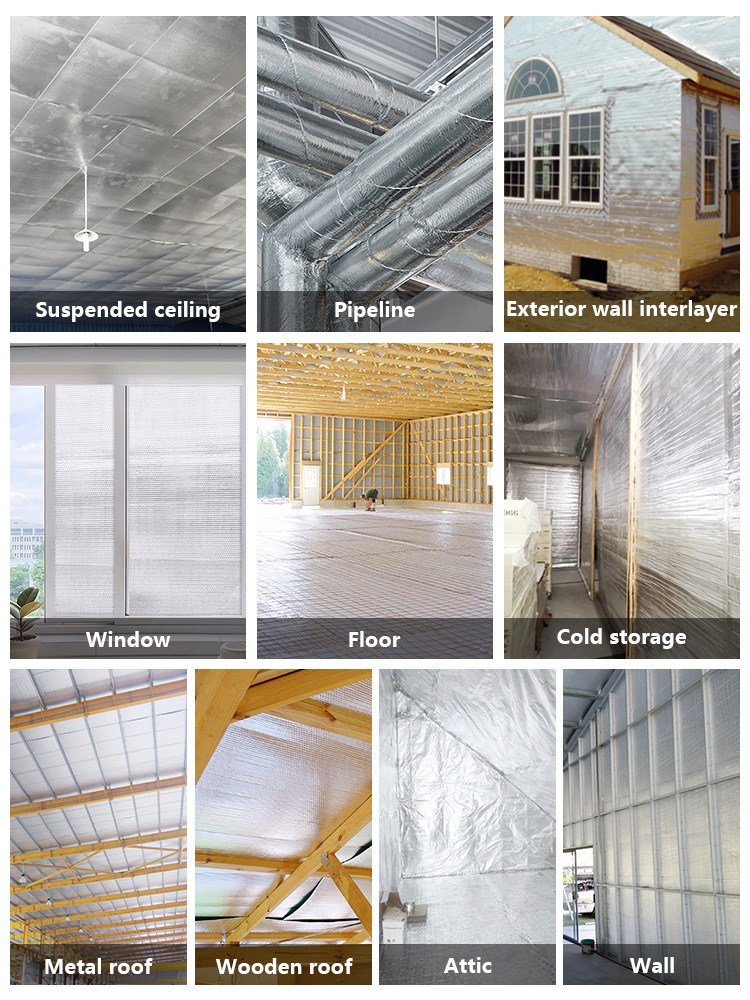

Applications:
External wall insulation for metal/wood/temporary buildings
Flat/pitched roof and ceiling insulation
Ground insulation
Insulation for air conditioning and heating systems
Insulation for doors, windows, stairs, garages, etc.
Insulation for special structures (e.g., breeding greenhouses, cold storage)
Production of related building insulation products
|
Test Items (Standards) |
Alu Foil Bubble |
Alu Foil Double Bubble |
|
Thermal Resistance (ASTM-C518-21) |
0.092 (㎡·K)/W |
0.92 (㎡·K)/W |
|
Thermal Conductivity (ASTM-C518-21) |
0.028 W/m·k |
0.036 W/(m·k) |
|
Reflectivity (ASTM E424) |
95% - 97% |
|
|
REACH Material Safety (1907/2006) |
Pass |
|
|
High & Low Temperature Resistance (EN 1604:2013) |
-40℃-80℃ |
|
|
Tensile Strength (JC/T2494-2018) |
370 N/mm |
|
|
Burst Strength (GB/T1539-2007) |
1022 Kpa |
|
|
Water Vapor Transmission Rate (ASTM E96) |
<0.02㎡.h |
|
