Espa?olHeat insulation & preservation, energy-saving
95%-97% reflectivity, ≥15℃ internal-external temperature difference
Excellent water & moisture resistance
Safe, eco-friendly, non-toxic
Easy to cut and install; adhesive backing is waterproof and high-temperature resistant
Good weather resistance, tear & corrosion resistance, long service life

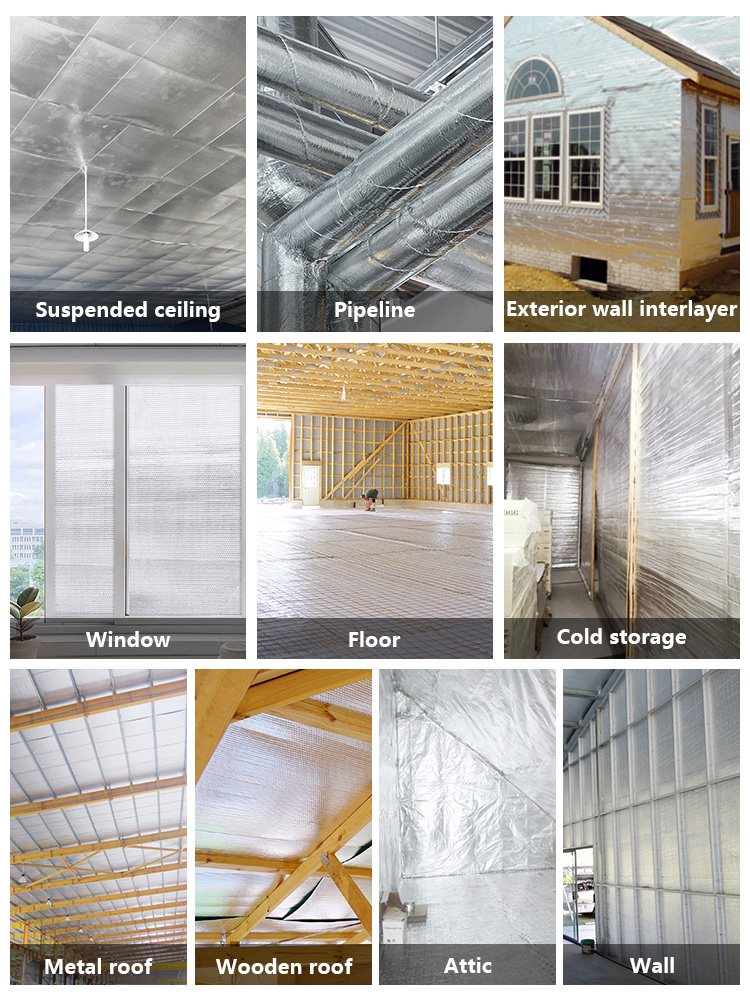

Applications:
External wall insulation for metal/wood/temporary buildings
Flat/pitched roof and ceiling insulation
Ground insulation
Insulation for air conditioning and heating systems
Insulation for doors, windows, stairs, garages, etc.
|
Test Items (Standards) |
5mm |
10mm |
|
Thermal Resistance (ASTM-C518-21) |
0.22 W/m·k |
0.231 (㎡·K)/W |
|
Thermal Conductivity (ASTM-C518-21) |
0.041 W/m·k |
0.043 W/(m·k) |
|
Reflectivity (ASTM E424) |
95% - 97% |
|
|
Tear Resistance (T470am) |
431 - 541N |
|
|
REACH Material Safety (2011/65/EU) |
Pass |
|
|
High & Low Temp. Resistance (EN 1604:2013) |
-40℃-100℃ |
|
|
Water Vapor Transmission Rate (ASTM E96) |
<0.02㎡.h |
|
|
Sound Absorption Coefficient |
5.4%(1000HZ) |
|
|
AWTA Flammability Index |
3（0-100） |
|
