CTN3 Container Insulation And Moisture-Proof Liner
Product category:Cold Chain Logistics Packaging-Insulated Packaging for Warehouse
Material:

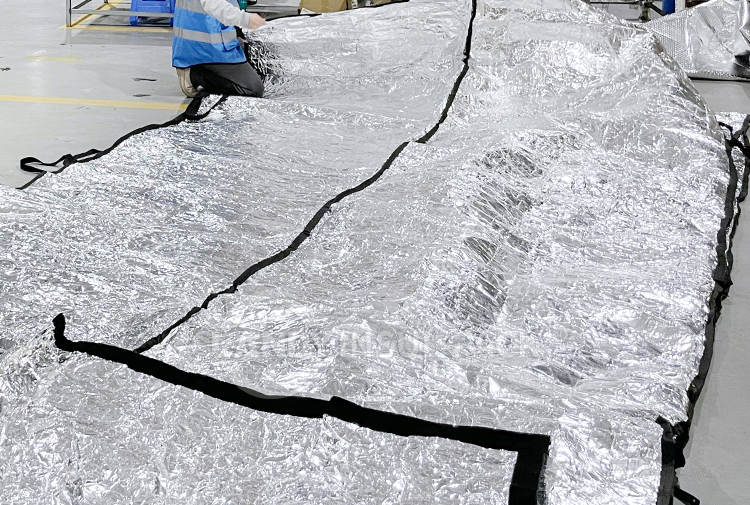

Double-sided aluminum foil woven fabric Density 135 (g/㎡)
Sizes (m)：
20GP 6.2*2.4*2.4 M
40GP 12*2.4*2.4 M
40HQ 12.45*2.4*2.7 M
45HQ 13.9*2.4*2.73 M
Weight (kg):20GP 14±5 Kg/PC; 40HQ 25± 5kg /PC;45HQ 27± 5kg /PC
Style：6 sides, webbing installation process
After Service：1-year warranty, free installation parts support
Features:
A.Thermal Insulation: Eliminate the impact of sudden temperature changes on product quality within a short time. The temperature difference between the inside and outside of the bulk bag can reach 10-20°C.
B.Heat Retention: In cold winters, the temperature fluctuation difference between the inside and outside of the inner liner bag can be reduced by 10-15°C.
C.Moisture Resistance: Prevent moisture absorption inside the container and avoid condensation caused by drastic temperature changes.
D.Energy Saving: Reflect 96% of heat sources, reduce the energy consumption for cooling during refrigerated truck transportation, and achieve energy-saving effects.
E.Lightweight and Portable: Weighing 13.9kg for a 20GP container, it can be installed by 2 workers in 15-20 minutes according to the product instructions.
Applications:
1. Suitable for container transportation of cold-chain goods by sea, land, and air, as well as logistics transfer of containers at ports or warehouses.
2. When used together with pallet insulation covers, the overall thermal insulation effect of the container insulation bag is better.
Product Introduction
Container Insulation Liner Technical Parameters
|
Performance
|
Index Value
|
Reference Standards
|
|
Water Vapor Transmission Rate
|
<0.02㎡.h
|
ASTM E96
|
|
Burst Strength
|
1366kPa
|
ISO 2759:2014
|
|
Tensile Strength
|
520-650N/50mm
|
ISO 2759:2014
|
|
Environmental Safety
|
REACH Passed
|
1907/2006號REACH法規(guī)
|
|
Reflectivity
|
96%
|
|
|

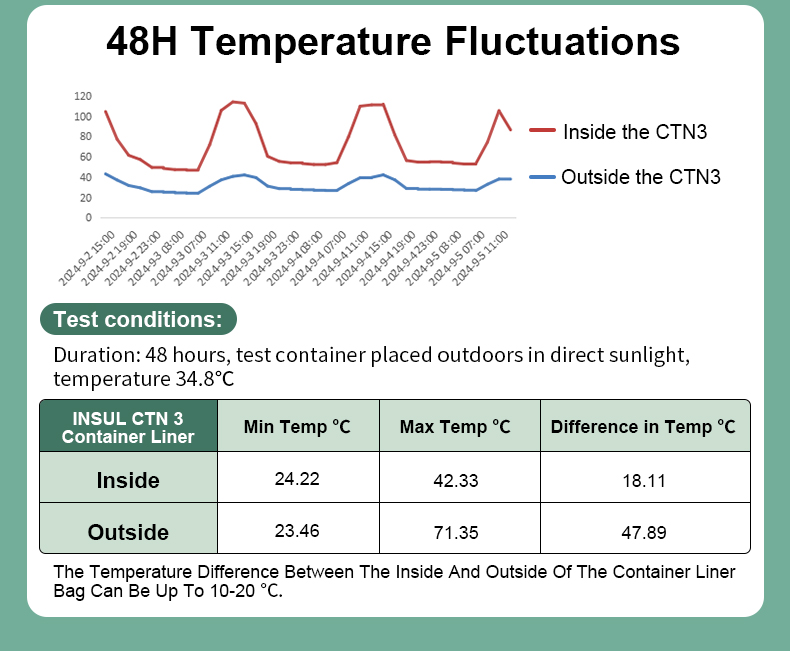

48H Temp. Fluctuation
|
The temperature difference between inside and outside can reach 10-20 ℃
|
|
|
High/Low Temperature Resistance
|
80℃ and -40℃, dimensional change rate <2%
|
|
Note: This product can be tested and customized according to different market standards with reference to varying market demands.
