BP Roll Container Insulation Cover
Product category:Cold Chain Logistics Packaging-Insulated Packaging for Warehouse
Material：
MPET Foil + Single / Double Bubble + MPET Foil
Alu Foil + Single / Double Bubble + Alu Foil
GSM 132-300 (g/㎡)

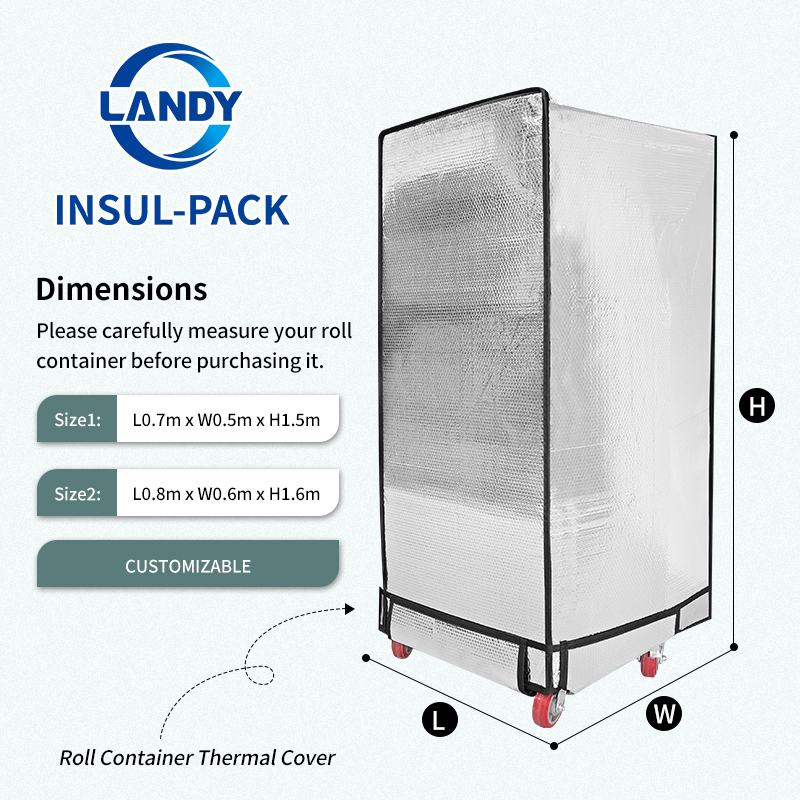

Sizes (m)：
L70 x W50 x H150 cm
L80 x W60 x H160 cm
Customized
Thickness (mm)：3mm,6mm
Weight (kg)：1.2*1.2*1.3m 4kg/PC

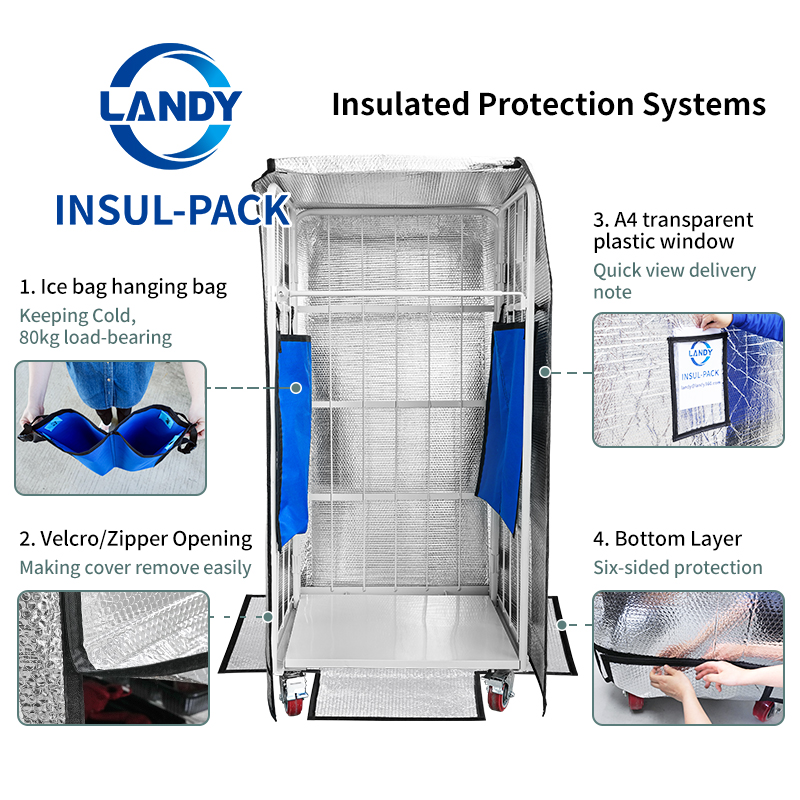

Style：Customizable. Five-sided or six-sided protection, Velcro or zipper opening, with or without A4 transparent plastic window

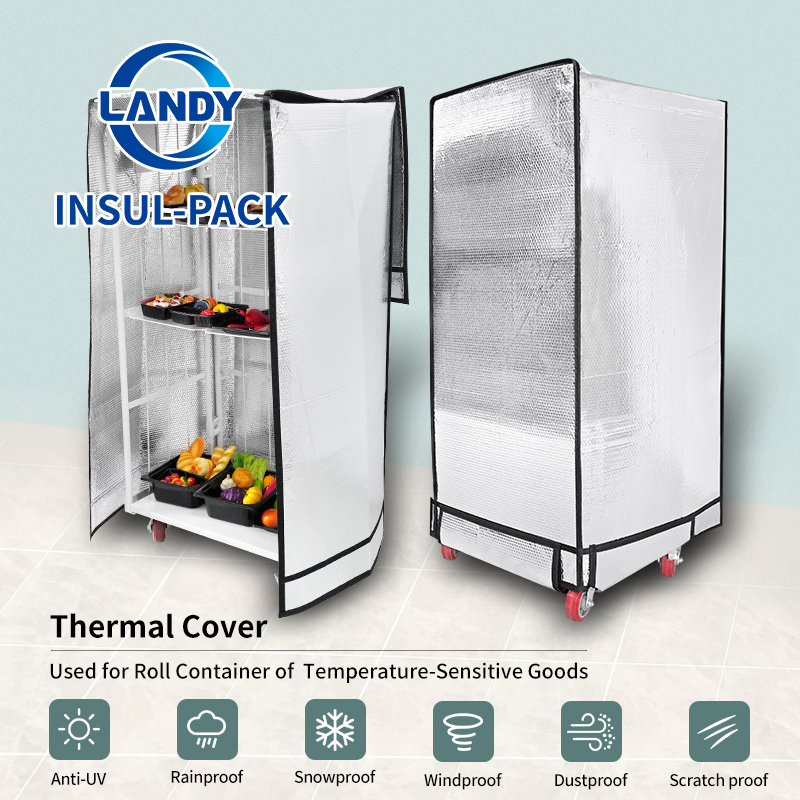

Use：Used for pallet packaging of temperature-sensitive goods, with heat insulation, UV resistance, waterproof, rainproof, dirt-proof, tear-resistant and other functions.
Features：
1. The material complies with EU environmental safety standards
2. The maximum temperature difference between the inside and outside of the heat shield can reach: 5°-20°C
3. It can effectively block oxygen, water vapor, ultraviolet rays, and can block sunlight;
4. Lightweight, foldable, recyclable, space-saving and cost-effective.
Applicable Scenarios：
1. Used in cold chain logistics related scenarios, such as pallet transportation, warehousing, cage trucks and trolleys for perishable and frozen foods, beer/beverages and dry ice, industrial chemicals and paints, pharmaceutical products, electrical products, ice cream and dairy products, bakeries, catering/vending, etc.
2. Working temperature: -40-100°C
Product Introduction
Roll Container Cover Technical Parameters
|
Performance
|
Index Value
|
Reference Standards
|
|
|

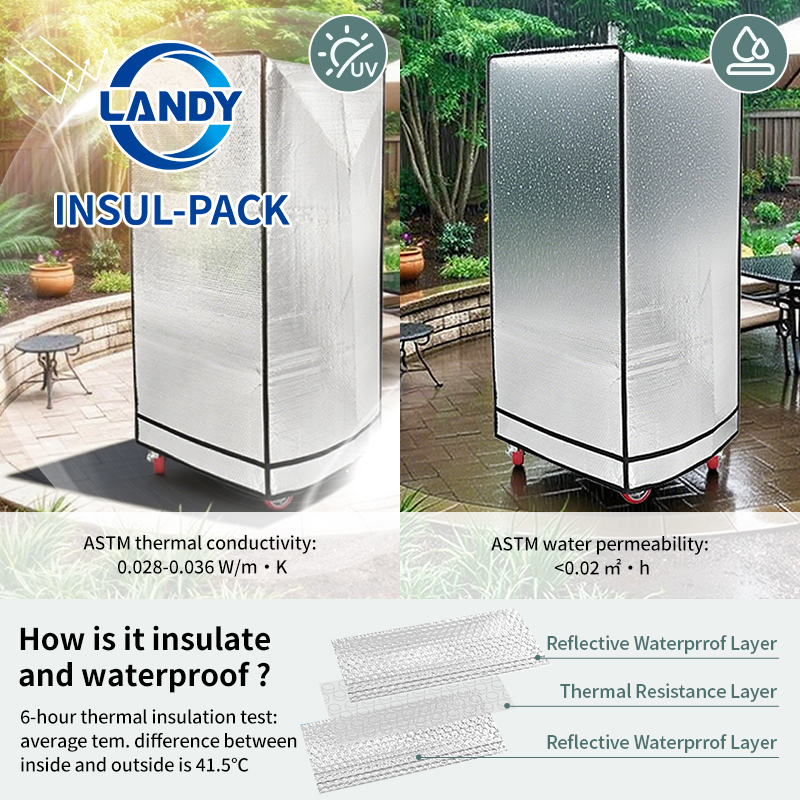

Insulation Test
|
Duration 6H Average temperature difference between inside and outside 41.5℃
|
Internal Standards
|
|
|
Alu Bubble
Thermal Conductivity
|
0.036 W/m.k
|
ASTM-C-518-21
|
|
|
Alu Bubble
Tensile Strength
|
329-373 N/50mm
|
JC/T 2494-2018
|
|
|
Environment Safety
|
REACH passed
|
REACH Regulation No. 1907/2006
|
|
|
Reflectivity
|
95-97%
|
|
|
|
High & Low Temp. Resistance
|
80℃ and -40℃, dimensional change rate <2%
|
|
|
Note: This product can be tested and customized according to different market standards with reference to varying market demands.
